Item | Unit | Product Specifications | ||||||
YHA4-10TS | YHA4-15TS | YHA4-20TS | YHA4-25TS | YHA4-30TS | YHA4-35TS | |||
Max.Working pressure | Mpa | 13 | 19 | 21 | 20 | 19 | 23 | |
Main cylinder force | kN | 100 | 150 | 200 | 250 | 300 | 350 | |
Max.Stroke of ram | mm | 300 | 300 | 300 | 300 | 350 | 350 | |
Max.Open height | mm | 400 | 450 | 450 | 500 | 550 | 550 | |
Middle blanking aperture size | mm | 150*100 | 150*100 | 150*100 | 200*150 | 200*150 | 250*200 | |
Speed of ram | Down no load | mm/s | 260 | 260 | 230 | 220 | 200 | 220 |
Pressing | mm/s | 40 | 38 | 35 | 30 | 20 | 30 | |
Return | mm/s | 260 | 260 | 225 | 220 | 200 | 210 | |
Effective area of working table | RL(column inside) | mm | 450 | 500 | 500 | 550 | 550 | 650 |
FB(edge) | mm | 450 | 500 | 500 | 550 | 550 | 550 | |
Overall dimension | L.R | mm | 900 | 900 | 900 | 980 | 980 | 980 |
F.B | mm | 850 | 850 | 850 | 900 | 900 | 900 | |
H | mm | 2105 | 2155 | 2155 | 2220 | 2270 | 2420 | |
Motor power | kW | 4 | 4 | 4 | 4 | 4 | 6 | |
Total weight(Approx) | kg | 900 | 950 | 1020 | 1080 | 1120 | 1400 | |
Oil quantity(Approx) | L | 150 | 150 | 150 | 170 | 170 | 180 |
Item | Unit | Product Specifications | ||||||
YHA4-40TS | YHA4-50TS | YHA4-60TS | YHA4-80TS | YHA4-100TS | YHA4-150TS | |||
Max.Working pressure | Mpa | 19 | 21 | 20 | 21 | 20 | 21 | |
Main cylinder force | kN | 400 | 500 | 600 | 800 | 1000 | 1500 | |
Max.Stroke of ram | mm | 450 | 450 | 450 | 450 | 450 | 450 | |
Max.Open height | mm | 600 | 700 | 700 | 700 | 700 | 700 | |
Middle blanking aperture size | mm | 250*200 | 250*200 | 300*200 | 400*250 | 400*250 | 400*250 | |
Speed of ram | Down no load | mm/s | 210 | 205 | 190 | 190 | 190 | 190 |
Pressing | mm/s | 20 | 18 | 15 | 15 | 15 | 15 | |
Return | mm/s | 200 | 200 | 190 | 190 | 190 | 175 | |
Effective area of working table | RL(column inside) | mm | 700 | 800 | 900 | 1000 | 1000 | 1000 |
FB(edge) | mm | 600 | 650 | 750 | 800 | 800 | 800 | |
Overall dimension | L.R | mm | 1250 | 1340 | 1460 | 1580 | 1620 | 1680 |
F.B | mm | 1100 | 1150 | 1220 | 1320 | 1350 | 1370 | |
H | mm | 2550 | 2750 | 2800 | 2850 | 2950 | 3150 | |
Motor power | kW | 6 | 11.6 | 11.6 | 11.6 | 16.4 | 16.4 | |
Total weight(Approx) | kg | 1650 | 2400 | 2900 | 3200 | 3400 | 3600 | |
Oil quantity(Approx) | L | 200 | 250 | 300 | 300 | 300 | 300 |
Advantages of our machine:
l With Servo system
YIHUI Hydraulic press with servo system,can bring you 10 kinds Advantages as below:
1. Can avoid the oil leakage. Because using Servo motor, the oil temperature can be lower.
2. English and customer country local language, bilingual operation interface, easy to operate.
3.Can save 50% – 70% electricity energy.
4.Parameters and Speed can be adjusted on the touch screen, easy to operate.(Machine without servo system, speed can not been adjusted.)
5.Can be 3 to 5 years longer service life than the common machine.
it means,if common machine can service for 10 years, then machine with servo, can use 15 years.
6.Ensure safety and easy to know error,easy to do after service. Because of Automatic alarm and auto troubleshooting system.
7.Very easy to change mold, shorter time of changing mold.
Because it have memory function,if use the original mold, do not need to adjust parameter again,
8.Very quiet , do not have noise.
9.Much stable than common machine.
10.Much high precision than common machine.
l We could supply not only custom machine,molds,robot arm(manipulator),auto feeder process technology, and other relative machines but also a full production line service.
l The main components are imported from Japan and Taiwan . So the quality is near the Japan production, but the unit price is lower than Japan production.
l Our factory have specialized in independent development and producing hydraulic press for over 20 years. So the product is stable and high quality.
l Machine body, we use bending structure , much stronger than the common welding structure .
l Oil pipe, we use Clip-on structure , much tight than common welding structure. Prevent oil leakage.
l We take integrated oil manifold block, much easier to check machine and repair machine.
Quality Control
All of the hydraulic presses in our factory have passed CE,ISO,SGS,BV certificates.
Technical Features
3. Pressure, stroke and pressurizing time can be adjusted according to processing requirement.
4. Optional configuration: protective shield, anti-drop device, blowing and removing scraps device, LED lighting and infrared grating, etc.
Applicable Scope
Center Blanking
Side Blanking

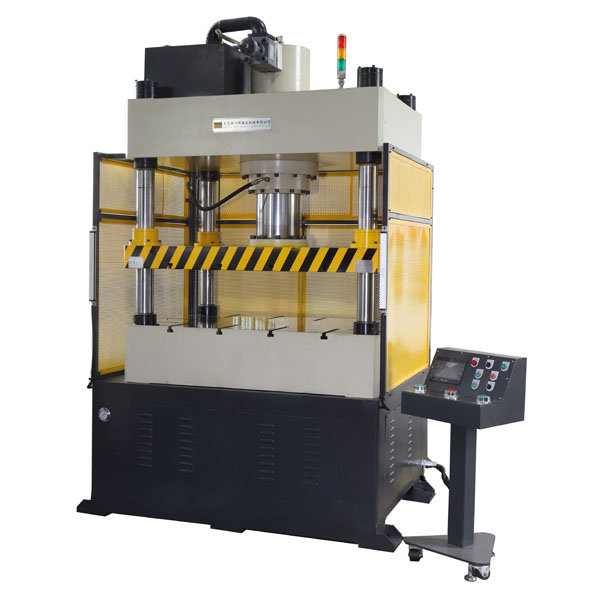

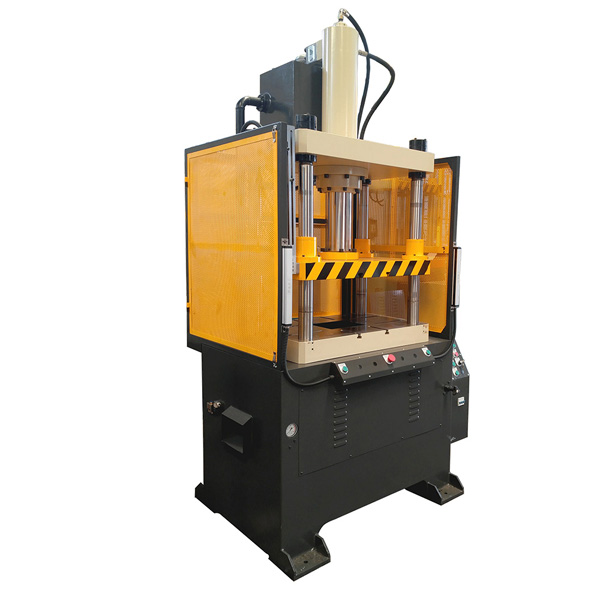

Protective Shield
Automatic robots can be used to operate for the large worktable machine.
Why so many famous brand company cooperate with us ?
1.Our factory have specialized in independent development and producing hydraulic press for 19 years. So the product is stable and high quality.
2. Machine body, we use bending structure , much stronger than the common welding structure .
3. Oil pipe, we use Clip-on structure , much tight than common welding structure. Prevent oil leakage.
4. We take integrated oil manifold block, much easier to check machine and repair machine.
5.The main components are imported from Japan and Taiwan . So the quality is near the Japan production, but the unit price is lower than Japan production.
6.Our factory can offer full set line service, such as the mould,process technology, and other relative machines.
Certificate:
1.Can avoid the oil leakage. Because using Servo motor, the oil temperature can be lower.
2.English and customer country local language, bilingual operation interface, easy to operate.
3.Can save 50% – 70% electricity energy.
4.Parameters and Speed can be adjusted on the touch screen, easy to operate.
(Machine without servo system, speed can not been adjusted.)
5.Can be 3 to 5 years longer service life than the common machine.
It means,if common machine can service for 10 years, then machine with servo, can use 15 years.
6.Ensure safety and easy to know error,easy to do after service.
Because of Automatic alarm and auto troubleshooting system.
7.Very easy to change mold, shorter time of changing mold.
Because it have memory function,if use the original mold, do not need to adjust parameter again,
8.Very quiet , do not have noise.
9.Much stable than common machine.
10.Much high precision than common machine.
