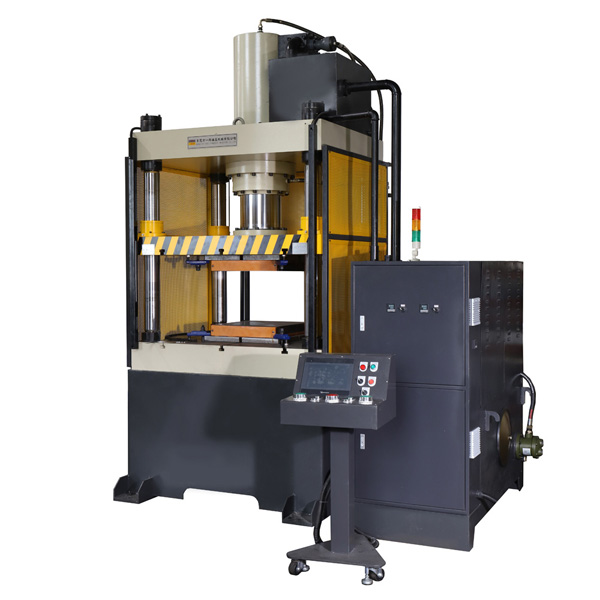

Heating Hydraulic Press
| Item | Unit | Product Specifications | |||||
| YHA6-100TS | YHA6-200TS | YHA6-300TS | YHA6-500TS | YHA6-1000TS | |||
| Nominal force | kN | 1000 | 2000 | 3000 | 5000 | 10000 | |
| Max.Working pressure | Mpa | 25 | 24 | 24 | 25 | 25 | |
| Main cylinder force | Ton | 1000 | 2000 | 3000 | 5000 | 10000 | |
| Max.Stroke of ram | mm | 110 | 150 | 150 | 150 | 150 | |
| Max.Open height | mm | 320 | 400 | 400 | 450 | 600 | |
| Speed of ram | Approaching | mm/s | 200 | 100 | 100 | 100 | 100 |
| Return | mm/s | 180 | 140 | 140 | 140 | 140 | |
| Effective area of working table | RL(column inside) | mm | 350 | 450 | 550 | 650 | 900 |
| FB(edge) | mm | 430 | 550 | 650 | 750 | 950 | |
| Overall dimension | L.R | mm | 1030 | 1130 | 1360 | 1380 | 1790 |
| F.B | mm | 950 | 1180 | 1530 | 1640 | 1620 | |
| H | mm | 1420 | 1630 | 1715 | 2150 | 2720 | |
| Motor power | kW | 3.75 | 5.5 | 7.5 | 11 | 11 | |
| Total weight(Approx) | kg | 1800 | 2200 | 3800 | 7500 | 15200 | |
Technical Features
- Four columns are made of high-strength alloy steel with hard chrome plated surface and good abrasion resistance.
- Pressure, stroke and pressurizing time can be adjusted according to processing requirement.
- Optional configuration: protective shield, anti-drop device, LED lighting and infrared grating, etc.
Applicable Scope
1. Pressing molding for metal products, electrical appliance, jewelry, locks and powder metallurgy, etc.
2. Stamping, forming, shallow stretching, shaping and other pressing process for metal and nonmetal.
Dongguan Yihui Hydraulic Machinery Co., Ltd, is experienced in designing and manufacturing various types of hydraulic press machines and servo press, Such as cold forging press, hot forging press, powder compacting hydraulic press, heating hydraulic press, deep drawing hydraulic press, servo press and so on . The plant is established in 1999 ,covers an area of 8,000 square meters. We are strictly implement the ISO9001 , CE, and SGS，BV management standards.
YIHUI brand presses have been exported to over 80 countries, Across five continents, in Europe, there are Germany, Italy, France, Sweden, Spain, Portugal, the United Kingdom, and so on. In the Americas, there are the USA, Brazil, Chile, Argentina, and so on. In Asia, there are Japan, South Korea, Malaysia, Indonesia, Singapore, Thailand, Vietnam, etc. In Africa, there are South Africa, Algeria, etc. Hydraulic press machine and servo press mainly applied to hardware, automotive, powder compacting,die casting, electronic, auto parts and other industries.
We can provide total solutions, including machines, molds, product processing technology, automated production lines.
YIHUI Hydraulic press with servo system,can bring you 10 kinds advantages as below:
1.Can avoid the oil leakage. Because using Servo motor, the oil temperature can be lower.
2.English and customer country local language, bilingual operation interface, easy to operate.
3.Can save 50% – 70% electricity energy.
4.Parameters and Speed can be adjusted on the touch screen, easy to operate.
(Machine without servo system, speed can not been adjusted.)
5.Can be 3 to 5 years longer service life than the common machine.
It means,if common machine can service for 10 years, then machine with servo, can use 15 years.
6.Ensure safety and easy to know error,easy to do after service.
Because of Automatic alarm and auto troubleshooting system.
7.Very easy to change mold, shorter time of changing mold.
Because it have memory function,if use the original mold, do not need to adjust parameter again,
8.Very quiet , do not have noise.
9.Much stable than common machine.
10.Much high precision than common machine.
