Powder Compacting Hydraulic Press

Short Description:


  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 500 Piece/Pieces per year
  • Product Detail

    COMPANY INTRODUTION

    Our Customers

    Exhibitions and Certificates

    Product Tags

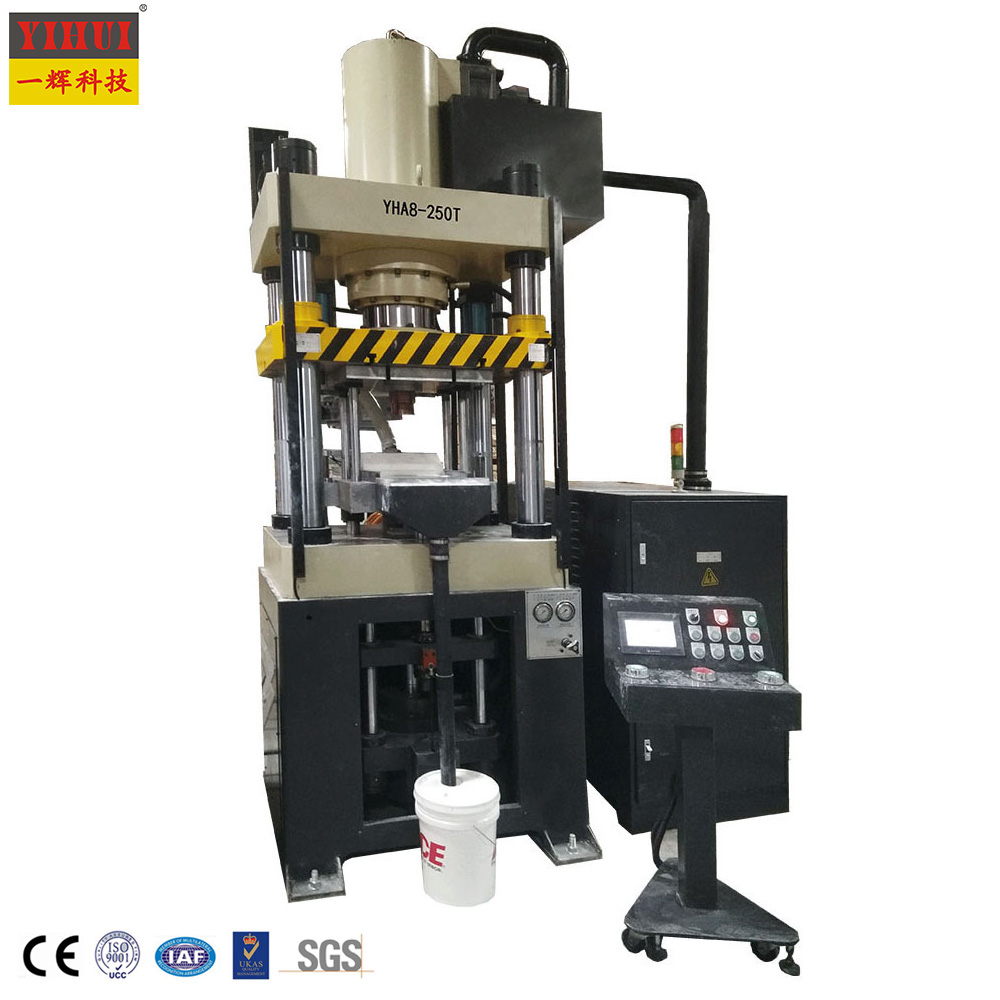

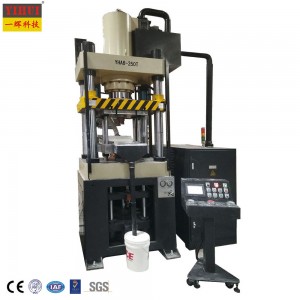

    YHA8 Series Fully Automatic Powder Compacting Press


    —High Density • Complex Shapes • One-Touch Forming Solution
    Key Differentiators
    Ultra-High Density Compaction
    Dual-axis pressing + floating die technology achieves 99.5% density uniformity (vs. 90% conventional)
    Optional isostatic pressing module (200MPa+) for carbide/ceramic parts



    Intelligent Closed-Loop Control
    Real-time adjustment of pressure/speed/dwell time (±0.02mm thickness tolerance)
    7" HMI with 50+ material presets (show powder metallurgy/ceramic mode switching)



    Zero Contamination Production
    Fully enclosed dust-proof design (vs. open-frame competitors)
    Automatic lubrication system with >95% powder recovery rate



    Industry-Specific Solutions
    Powder Metal Gear Forming
    Pain Point: Incomplete tooth filling → weak sintering
    Our Tech:
    Multi-stage vibration filling
    Die preheating to 80°C±2°C (with thermal graph)



    Ceramic Capacitor Blanks
    Pain Point: Delamination & thickness variation
    Our Tech:
    20-stage programmable pressure curves (video demo)
    Nano-flat platen (laser inspection report popup)



    Why choose us?
    2X Die Lifespan:
    Tungsten steel liner + German coating tech
    50% Faster Changeover:
    Quick-release tooling system
    Global Support:
    24/7 engineers in DE/JP/MX

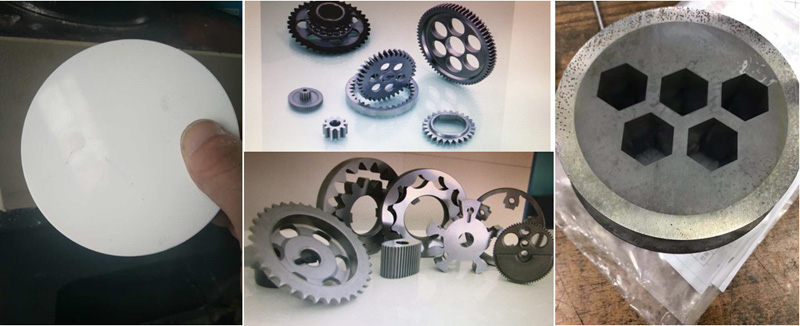

    Applications of Hydraulic Powder Compacting Press are:

    ● Producing the Powder Metallurgy Parts.

    ● Producing the cosmetic ,pharmaceutical industries parts

    ● Producing the Iron-Base & Non-Ferrous- Base Sintered Structural Parts

    ● Producing the Ceramic & Cermet Parts

    ● Producing the Carbon & Carbide Parts

    ● Producing the Magnetic & Self - Lubricating Parts

    ● Producing the Stainless & Alloy Parts

    ● Producing parts for Automobile & Machines

    ● Producing parts for Aircraft & Aerospace

    ● Producing parts for Atomic Reactors

    Product Features:

    ● Easy installation

    ● No maintaining cost

    ● Flawless performance

    ● Longer working life

    Advantages:

    ● With movable intermediate plate.

    ● With automatic feeding shoes.

    ● Full automatically

    1

    Advantages of our machine:

    ● With Servo system

    YIHUI Hydraulic press with servo system,can bring you 10 kinds Advantages as below:

    1. Can avoid the oil leakage. Because using Servo motor, the oil temperature can be lower.

    2. English and customer country local language, bilingual operation interface, easy to operate.

    3.Can save 50% - 70% electricity energy.

    4.Parameters and Speed can be adjusted on the touch screen, easy to operate.(Machine without servo system, speed can not been adjusted.)

    5.Can be 3 to 5 years longer service life than the common machine.

    it means,if common machine can service for 10 years, then machine with servo, can use 15 years.

    6.Ensure safety and easy to know error,easy to do after service. Because of Automatic alarm and auto troubleshooting system.

    7.Very easy to change mold, shorter time of changing mold.

    Because it have memory function,if use the original mold, do not need to adjust parameter again,

    8.Very quiet , do not have noise.

    9.Much stable than common machine.

    10.Much high precision than common machine.

    ● We could supply not only custom machine,molds,robot arm(manipulator),auto feeder process technology, and other relative machines but also a full production line service.

    ● The main components are imported from Japan and Taiwan . So the quality is near the Japan production, but the unit price is lower than  Japan production.

    ● Our factory have specialized in independent development and producing hydraulic press for over 20 years. So the product is stable and high quality.

    ● Machine body, we use bending structure , much stronger than the common welding structure .

    ● Oil pipe, we use Clip-on structure , much tight than common welding structure. Prevent oil leakage.

    ● We take integrated oil manifold block, much easier to check machine and repair machine.

    Quality Control

    All of the hydraulic presses in our factory have passed CE,ISO,SGS,BV certificates.

    Technical Features

    1.Four columns are made of high-strength quality round steel with surface hardened via high-frequency treatment, and electroplated after grinding. Good abrasion resistance is guaranteed.

    2.Production efficiency is high with fast falling speed of the moving bolster.

    Pressure, stroke and pressurizing time can be adjusted according to processing requirement.

    Designed with PLC programming circuit and touch panel operating system. Easy and convenient to operate.

    Optional configuration: protective shielf, LED lighting and infrared grating, etc.

    Applicable Scope

    1.Hydro forming for kettle, tableware, silencing pipe, decorative tube, special-shaped tee and special-shaped curved surface, etc.

    2.Applied to shallow stretching, molding, punching, shaping and other pressing process for metal and nonmetal parts.




  • Previous:
  • Next:

  • 一辉(1)_04

       Dongguan Yihui Hydraulic Machinery Co., Ltd, is experienced in designing and manufacturing various types of hydraulic press machines and servo press, Such as cold forging press, hot forging press, powder compacting hydraulic press, heating hydraulic press, deep drawing hydraulic press, servo press and so on . The plant is established in 1999 ,covers an area of 8,000 square meters. We are strictly implement the ISO9001 , CE, and SGS,BV management standards.
    YIHUI brand presses have been exported to over 80 countries, Across five continents, in Europe, there are Germany, Italy, France, Sweden, Spain, Portugal, the United Kingdom, and so on. In the Americas, there are the USA, Brazil, Chile, Argentina, and so on. In Asia, there are Japan, South Korea, Malaysia, Indonesia, Singapore, Thailand, Vietnam, etc. In Africa, there are South Africa, Algeria, etc. Hydraulic press machine and servo press mainly applied to hardware, automotive, powder compacting,die casting, electronic, auto parts and other industries.
    We can provide total solutions, including machines, molds, product processing technology, automated production lines.
