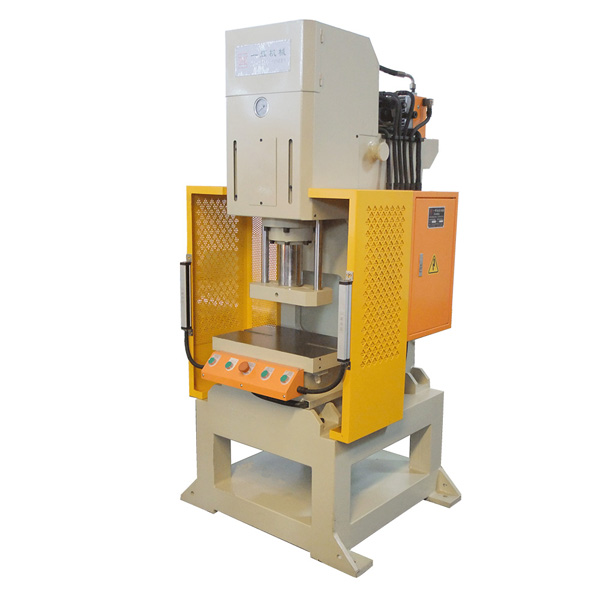

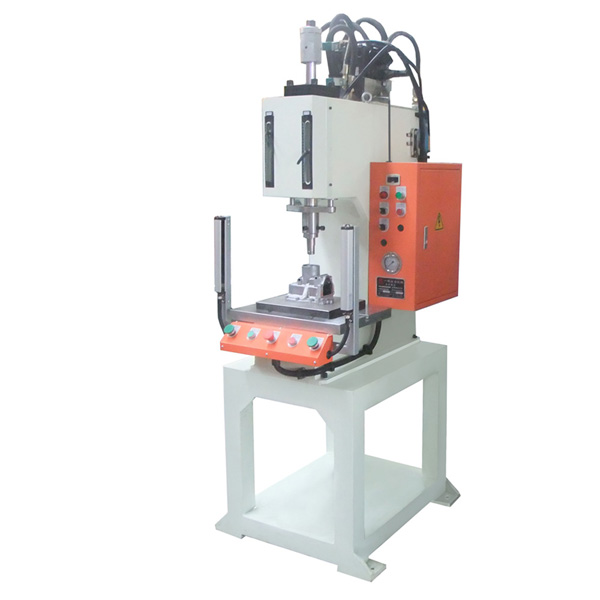

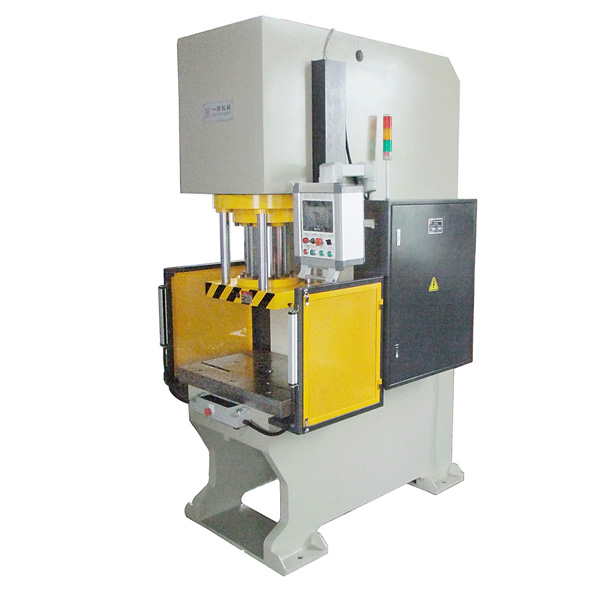

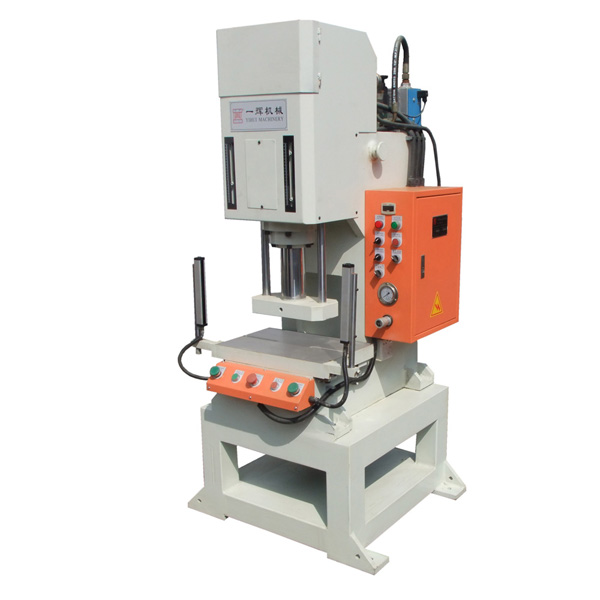

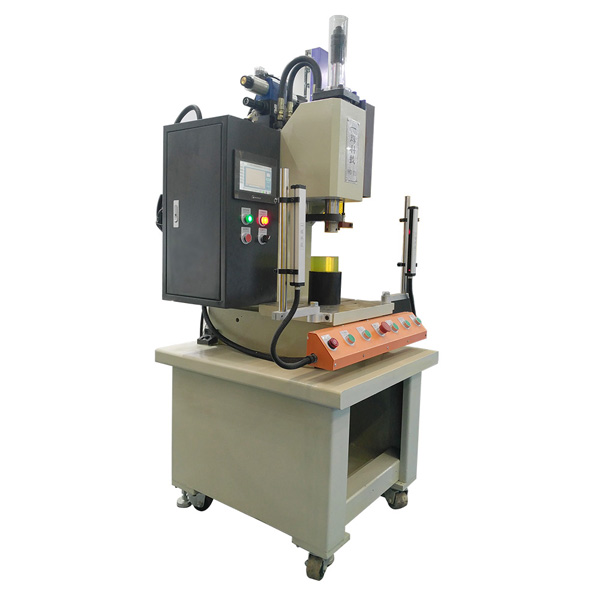

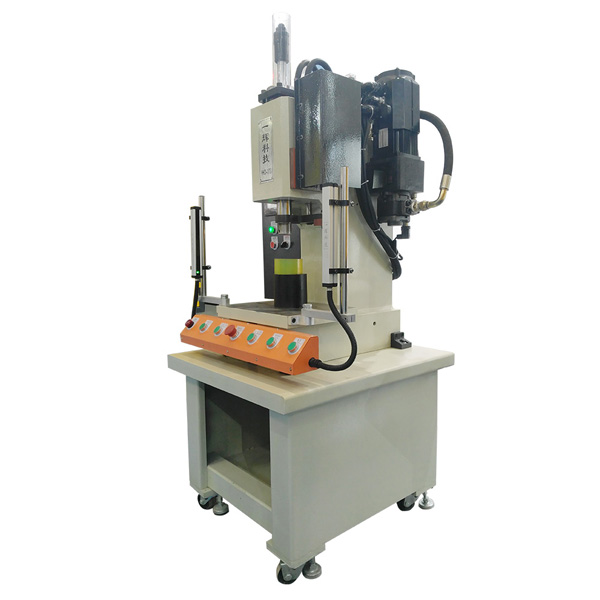

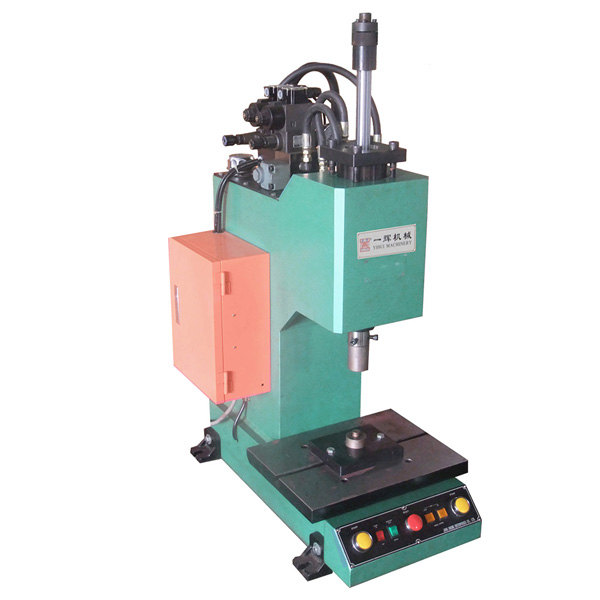

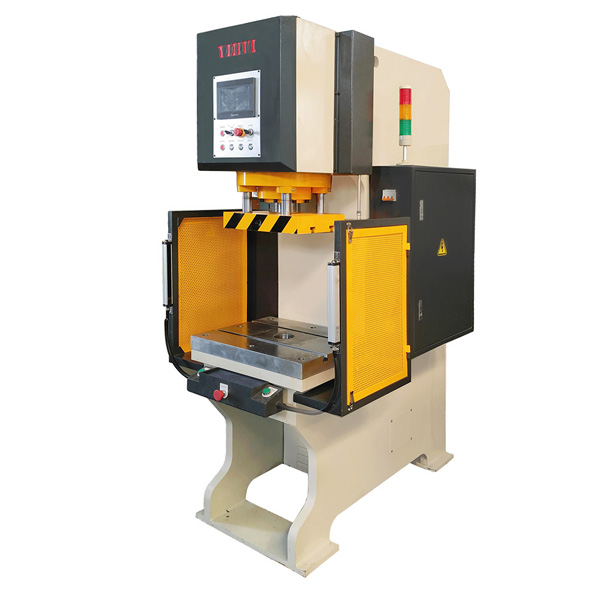

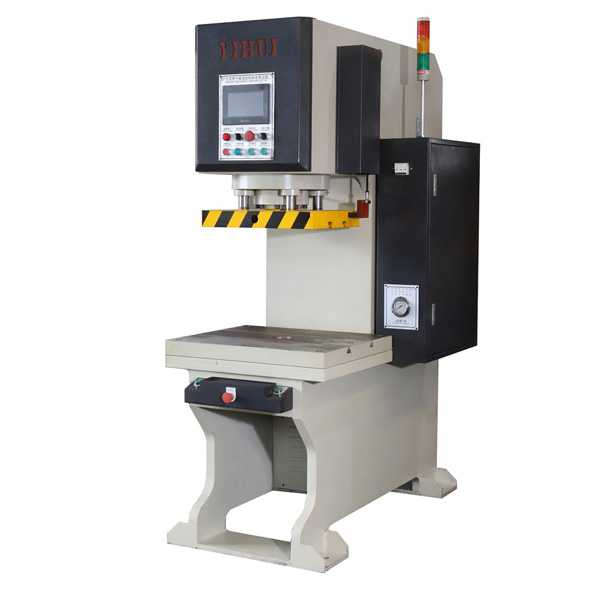

20 ton clinching unloading metalworking gap vertical assemble C frame riveting hydraulic Press machine supplier in China

Short Description:


  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 500 Piece/Pieces per year

    • Product Detail

    Our Customers

    Customers Feedback

    Exhibition

    Product Tags

     Item Unit Product Specifications
    YHC1-3TS YHC1-5TS YHC1-10TS YHC1-15TS YHC1-20TS YHC1-25TS YHC1-30TS
    Max.Working pressure Mpa 12 14 13 19 21 20 19
    Main cylinder force kN 30 50 100 150 200 250 300
    Max.Stroke of ram mm 150 150 200 200 250 250 300
    Max.Open height mm 320 320 380 400 400 450 450
    Speed of ram Down no load mm/s 220 210 400 450 450 500 500
    Pressing mm/s 40 35 40 40 35 30 20
    Return mm/s 200 200 280 280 270 250 230
    Effective area of working table RL(edge) mm - - 350 350 350 400 400
    FB(edge) mm - - 250 250 250 300 300
    Adaptor mm φ25*40 φ25*40 φ32*50 φ38*60 φ38*60 φ50*70 φ50*70
    Effective area of working table RL(edge) mm 450 450 500 550 550 600 600
    FB(edge) mm 320 320 320 380 380 460 460
    Overall dimension L.R mm 680 680 900 940 940 960 960
    F.B mm 920 920 600 1040 1040 1080 1080
    H mm 1980 1980 2000 2020 2020 2415 2415
    Motor power kW 4 4 4 4 4 6 6
    Total weight(Approx) kg 600 720 800 850 890 2210 2350
    Oil quantity(Approx) L 70 70 80 80 80 120 120
     Item Unit Product Specifications
    YHC1-40TS YHC1-50TS YHC1-60TS YHC1-80TS YHC1-100TS YHC1-150TS
    Max.Working pressure Mpa 20 20 20 21 20 21
    Main cylinder force kN 400 500 600 800 1000 1500
    Max.Stroke of ram mm 350 350 450 450 450 450
    Max.Open height mm 550 550 600 600 700 700
    Speed of ram Down no load mm/s 210 205 190 190 190 180
    Pressing mm/s 25 22 20 20 20 15
    Return mm/s 200 200 180 185 180 180
    Effective area of working table RL(edge) mm 450 450 500 500 600 600
    FB(edge) mm 250 250 300 300 380 380
    Adaptor mm φ50*70 φ50*70 φ60*75 φ60*75 φ60*75 φ60*75
    Effective area of working table RL(edge) mm 700 700 800 800 900 900
    FB(edge) mm 500 500 550 550 600 600
    Overall dimension L.R mm 820 820 950 950 1150 1150
    F.B mm 1350 1540 1680 1750 1840 1950
    H mm 2150 2200 2350 2540 2580 2670
    Motor power kW 6 11.6 11.6 11.6 16.4 16.4
    Total weight(Approx) kg 2480 2610 2800 4850 6500 11000
    Oil quantity(Approx) L 130 130 150 200 270 270

    18

    Salient features:

    l High operational accuracy

    l Easy installation

    l Robust construction

    l Fully hydraulic powered cushions, knockouts, ejectors and blankholders are available

    l Most cost-effective

    l High speed slide approach

    l You can avail the press as per customized requirements

    Advantages of our machine:

    l With Servo system

    YIHUI Hydraulic press with servo system,can bring you 10 kinds Advantages as below:

    1. Can avoid the oil leakage. Because using Servo motor, the oil temperature can be lower.

    2. English and customer country local language, bilingual operation interface, easy to operate.

    3.Can save 50% – 70% electricity energy.

    4.Parameters and Speed can be adjusted on the touch screen, easy to operate.(Machine without servo system, speed can not been adjusted.)

    5.Can be 3 to 5 years longer service life than the common machine.

    it means,if common machine can service for 10 years, then machine with servo, can use 15 years.

    6.Ensure safety and easy to know error,easy to do after service. Because of Automatic alarm and auto troubleshooting system.

    7.Very easy to change mold, shorter time of changing mold.

    Because it have memory function,if use the original mold, do not need to adjust parameter again,

    8.Very quiet , do not have noise.

    9.Much stable than common machine.

    10.Much high precision than common machine.

    l We could supply not only custom machine,molds,robot arm(manipulator),auto feeder process technology, and other relative machines but also a full production line service.

    l The main components are imported from Japan and Taiwan . So the quality is near the Japan production, but the unit price is lower than  Japan production.

    l Our factory have specialized in independent development and producing hydraulic press for over 20 years. So the product is stable and high quality.

    l Machine body, we use bending structure , much stronger than the common welding structure .

    l Oil pipe, we use Clip-on structure , much tight than common welding structure. Prevent oil leakage.

    l We take integrated oil manifold block, much easier to check machine and repair machine.

    Quality Control

    All of the hydraulic presses in our factory have passed CE,ISO,SGS,BV certificates.

    Technical Features

    1. Using built-in high speed cylinder, has fast falling speed and high production efficiency.

    2. C frame structure design enables wholly accessible operating space, long stroke distance and enough opening height.

    3. Pressure, stroke and pressurizing time can be adjusted according to processing requirement.

    4. Optional configuration: protective shield, anti-drop device, LED lighting and infrared grating, etc.

    Applicable Scope

    1. Punching forming, cutting forming, riveting, half and full cutting of thin sheet, press point  forming of locknut, etc.

    2. Shaping and punching for metal and nonmetal parts.

  • Previous:
  • Next:

    •

    3



    Why so many famous brand company cooperate with us ?

    1.Our factory have specialized in  independent development and producing hydraulic press for 19 years. So the product is stable and high quality.

    2. Machine body, we use bending structure , much stronger than the common welding structure .

    3. Oil pipe, we use Clip-on structure , much tight than common welding structure. Prevent oil leakage.

    4. We take integrated oil manifold block, much easier to check machine and repair machine.

    5.The main components are imported from Japan and Taiwan .    So the quality is near the Japan production, but the unit price is lower than  Japan production.

    6.Our factory can offer full set line service, such as the mould,process technology, and other relative machines.



    4

    Certificate：

    2

    1

    YIHUI Hydraulic press with servo system,can bring you 10 kinds advantages as below:

    1.Can avoid the oil leakage. Because using Servo motor, the oil temperature can be lower.
    2.English and customer country local language, bilingual operation interface, easy to operate.
    3.Can save 50% – 70% electricity energy.
    4.Parameters and Speed can be adjusted on the touch screen, easy to operate.
    (Machine without servo system, speed can not been adjusted.)
    5.Can be 3 to 5 years longer service life than the common machine.
    It means,if common machine can service for 10 years, then machine with servo, can use 15 years.
    6.Ensure safety and easy to know error,easy to do after service.
    Because of Automatic alarm and auto troubleshooting system.
    7.Very easy to change mold, shorter time of changing mold.
    Because it have memory function,if use the original mold, do not need to adjust parameter again,
    8.Very quiet , do not have noise.
    9.Much stable than common machine.
    10.Much high precision than common machine.
